2026 GMC Sierra HD Towing Capacity







Powering Shelby County’s Heaviest Jobs

For truck owners in Sidney, Ohio, a pickup is defined by what it can pull. The 2026 GMC Sierra HD lineup is engineered to dominate the most demanding tasks, from hauling livestock trailers to moving heavy construction equipment. With a maximum available towing capacity of 36,000 lbs, the 2026 Sierra 3500 HD asserts itself as the ultimate tool for commercial-grade hauling. Even the single-rear-wheel 2500 HD offers class-leading capability, ensuring you never have to leave equipment behind.





2026 GMC Sierra HD Towing Chart

The towing limits of your truck depend heavily on the engine, cab configuration, and hitch type. The table below breaks down the maximum ratings for the two primary powerplants available at Chesrown Chevrolet of Sidney.

Configuration	6.6L V8 Gas Engine	6.6L Duramax Turbo-Diesel
Sierra 2500 HD Conventional	Up to 16,000 lbs	Up to 20,000 lbs
Sierra 2500 HD 5th Wheel/Gooseneck	Up to 18,700 lbs	Up to 22,390 lbs
Sierra 3500 HD Conventional	Up to 18,800 lbs	Up to 20,000 lbs
Sierra 3500 HD 5th Wheel/Gooseneck	Up to 19,090 lbs	Up to 36,000 lbs




The Engine Behind the Numbers

The secret to this capability lies in the 6.6L Duramax Turbo-Diesel V8. It delivers 470 horsepower and a massive 975 lb-ft of torque.

Why Torque Matters:

Horsepower helps you maintain speed on the highway, but torque is what gets the load moving from a dead stop. With 975 lb-ft available low in the rev range, the Duramax engine allows you to pull a 30,000 lb trailer up a steep grade without straining the engine.

Allison 10-Speed Transmission:

Both the gas and diesel engines are paired with an Allison 10-speed automatic transmission. This heavy-duty gearbox keeps the engine in its optimal power band, providing smooth shifts and confident acceleration even when fully loaded.

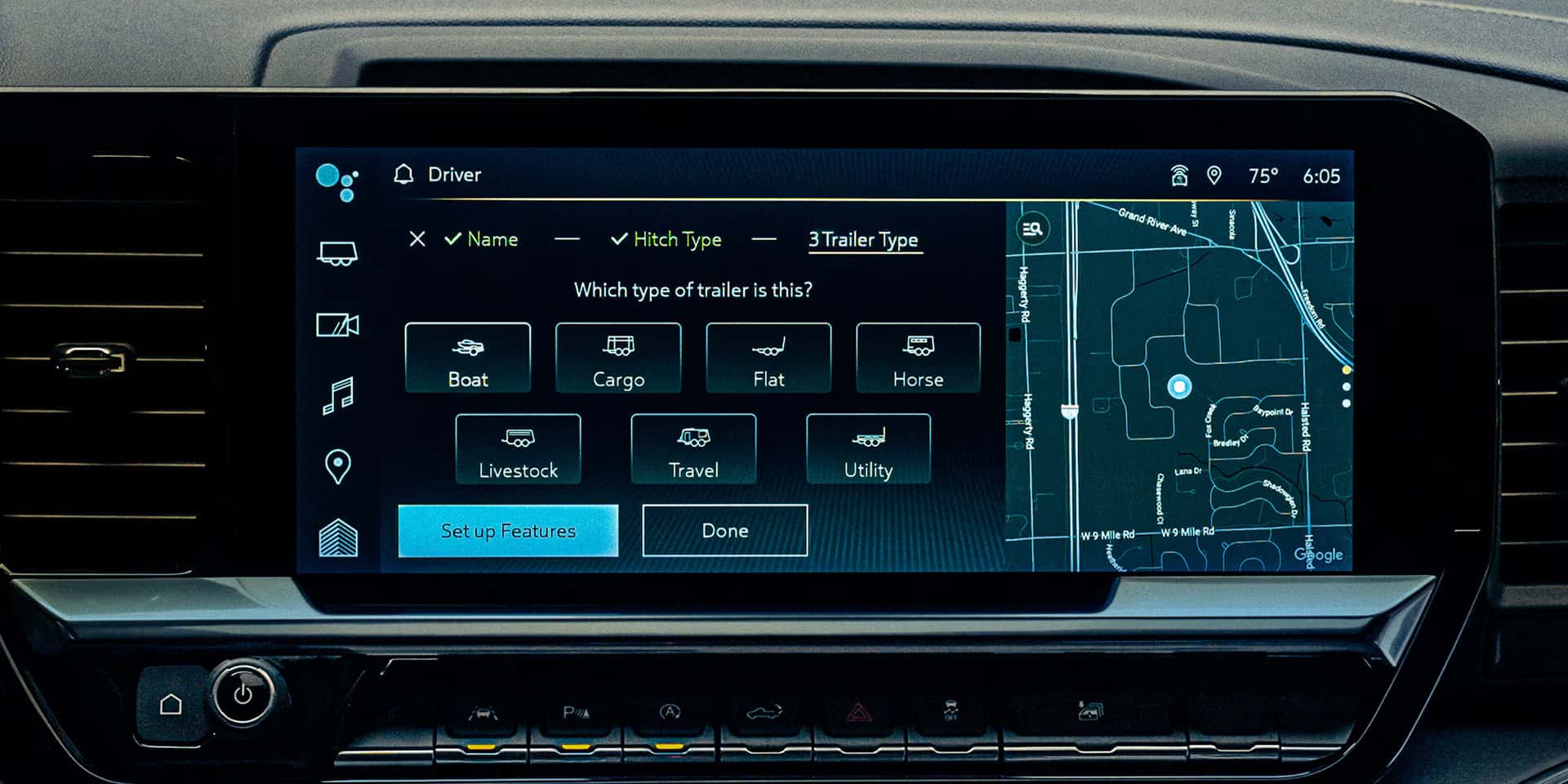

ProGrade Trailering System

Raw power is only half the equation. The 2026 Sierra HD features the ProGrade Trailering System, a suite of intelligent technologies designed to make towing safer and easier.

Transparent Trailer View: This system stitches together images from rear-mounted cameras to make your trailer appear “invisible” on the center touchscreen. This allows you to see traffic directly behind you, eliminating dangerous blind spots. 14 Camera Views: From a bed view to check your 5th-wheel connection to a picture-in-picture side view for navigating tight turns, these cameras give you complete situational awareness. Adaptive Cruise Control with Trailering: This feature accounts for the additional drag and braking distance of your trailer, automatically maintaining a safe gap between you and the vehicle ahead on Ohio highways.

Important Definitions for Buyers

To ensure you choose the right truck, it is helpful to understand these key terms:

• GCWR (Gross Combined Weight Rating): This is the maximum allowable weight of the truck, passengers, cargo, and trailer combined. For the 2026 Sierra 3500 HD, this rating can exceed 40,000 lbs.
• Conventional vs. 5th Wheel: Conventional towing uses the ball hitch on the rear bumper. 5th Wheel and Gooseneck hitches mount in the bed of the truck, directly over the rear axle. This placement allows the truck to carry significantly more weight, which is why the max 36,000 lb rating requires a Gooseneck setup.



Match Your Trailer to the Right Truck

If you are unsure which configuration fits your specific trailer, our team at Chesrown Chevrolet of Sidney can help. We can review the door jamb compliance label on any unit in our GMC Sierra HD Inventory to verify its exact payload and towing limits.
